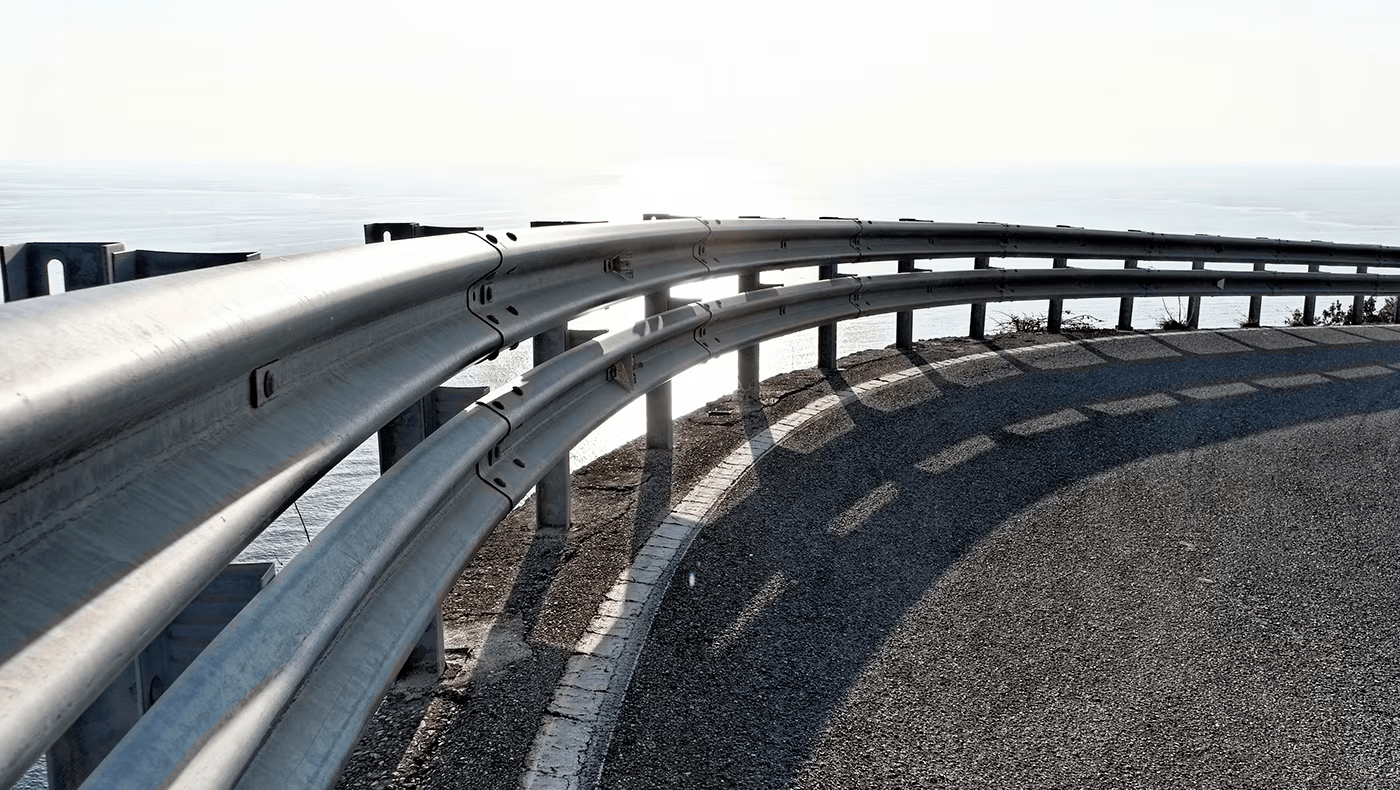

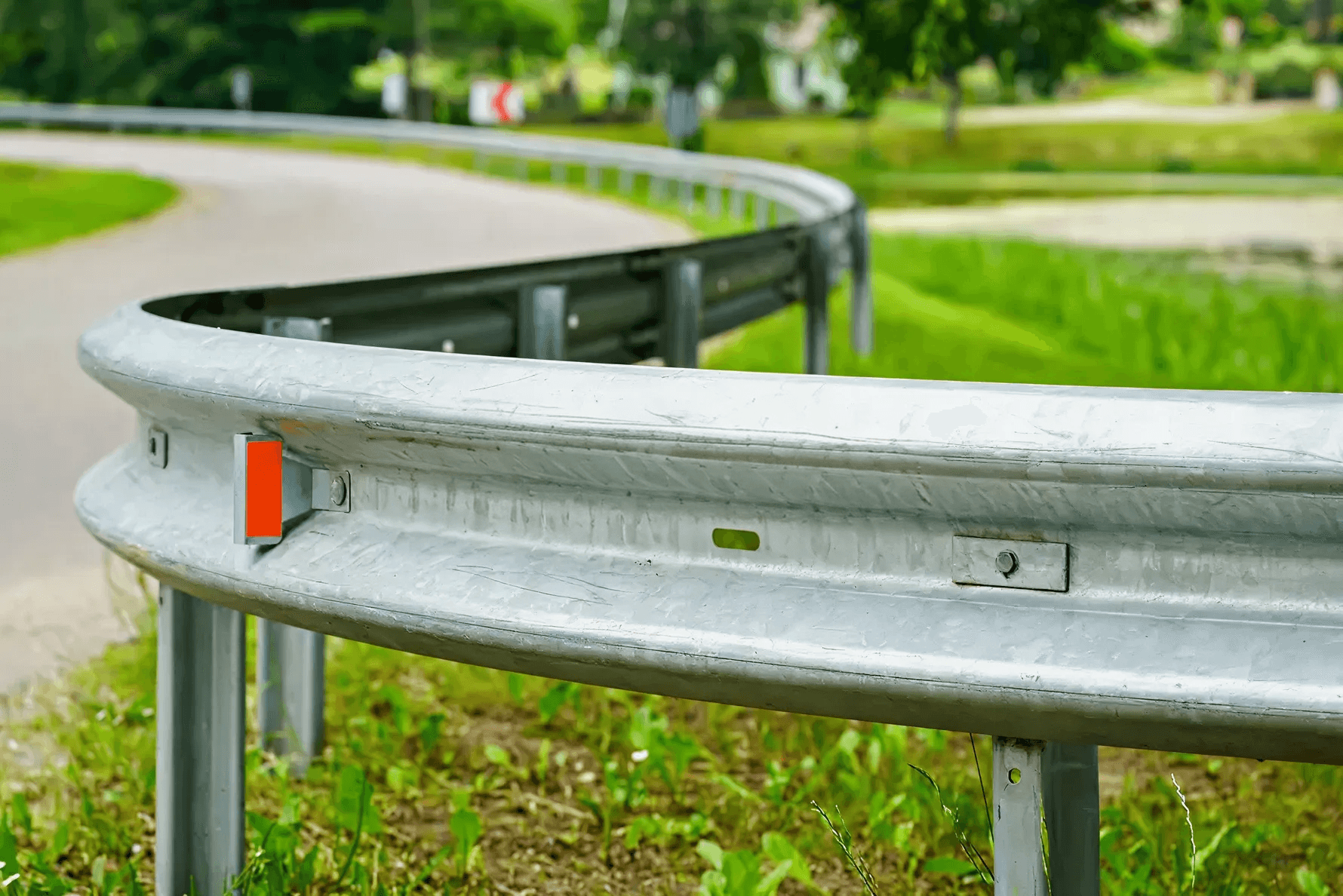

Vibhor Steel Tubes Ltd. offers a Metal Beam Crash Barrier that is versatile, suitable for use on medians, shoulders, verges, and steep embankments. This barrier is safer than rigid alternatives, as its metal beam design significantly reduces the impact on errant vehicles due to its resilience.
Maintenance is quick and easy; only the damaged posts and beams need to be removed from their socketed foundations and replaced. Typically, the beam posts remain intact even after being struck by larger vehicles. Additionally, the zinc-coated barrier ensures a long lifespan at a low cost, making it a more economical choice compared to conventional barriers.
Our crash barriers and guard rail systems are engineered to enhance roadside safety by effectively containing and redirecting errant vehicles while minimizing impact severity. Manufactured from high-strength steel using precision cold roll forming and hot-dip galvanization, they deliver exceptional structural strength, corrosion resistance, and long-term performance in highways, bridges, medians, and infrastructure projects.
Sections are made with precision cold roll forming in 3.0 mm, 2.8 mm, and 2.6 mm, ensuring accuracy and high load capacity.
Produced from quality steel conforming to
IS 5986, IS 2062, IS 10748, or equivalent standards, guaranteeing reliable mechanical properties and compliance with recognized specifications.
Offered in multiple strength grades including
Fe 250, Fe 350, Fe 410, and Fe 510, enabling selection based on specific structural and design requirements.
Finished with a protective zinc coating of 550 GSM (grams per square meter) through a hot-dip galvanizing process to ensure superior corrosion resistance and long service life.
Available in lengths of 4318 mm and 3318 mm, effective lengths of 4000 mm and 3000 mm, customizable per project drawings.
Fasteners conform to IS 1363 and IS 1367, and dimensional tolerances are maintained as per
IS 1852, ensuring precision manufacturing and dependable installation performance.
- Vibhor Steel Tubes Ltd.- Metal Beam Crash Barrier has wide applications and is used on median, shoulders, verge and high embankment.
- Safer than rigid barrier as the impact to errant vehicle is much lower on account of resillience of the metal beam.
- Maintenance is very fast as only the damaged posts beam are taken out from the scoketed foundation and replaces with new post and beam is placed in respective position. Normally, beam post doesn’t break or damaged even after impact from much heavier/ bigger vehicle.
- Lower Maitenance Cost.
- Zinc coated Barrier means Long-life with low cost.
- Conventional Barriers are more safe from other barriers.
- Company & Service Information
- Product Specifications & Technical Details
- Installation, Maintenance & Performance
Yes, We Supply Pan India
